Jw_cad 機械設備工事_施工図集|ダウンロード版|ワンポイント解説付
Jw_cad 機械設備工事_施工図集_ver7.11a.zip
¥3,980 税込
購入後にDL出来ます (45307844バイト)
このJw_cad 機械設備工事_施工図集は、機械設備工事に必要な施工図をまとめたCADデータ集です。充実の内容で、様々な工事計画に応用できます。
この商品は、専門的な技術や知識が必要な機械設備工事において、設計や施工をスムーズに進めるためのツールとして最適です。各施工図には、正確な寸法や仕様、配管図、ダクト図などが記載されており、迷ったときの参考図として作業を進めることができます。
この商品は、設計者や施工者の専門性を高め、プロジェクトの効率化や品質向上にも貢献します。また、初心者の方にもわかりやすい解説や図面の提供もしていますので、学習にも最適です。
機械設備工事においては、正確性や安全性が重要ですので、作業に取り組む前に十分な確認や計画を行ってください。また、この商品はご自身のプロジェクトに合わせて活用してください。
このJw_cad 機械設備工事_施工図集を、あなたのプロジェクトにも役立ててください。
※詳細な情報はデータの内容をご確認ください。
▼ https://setsubit.com/category/drawing/
01_埋設配管施工図

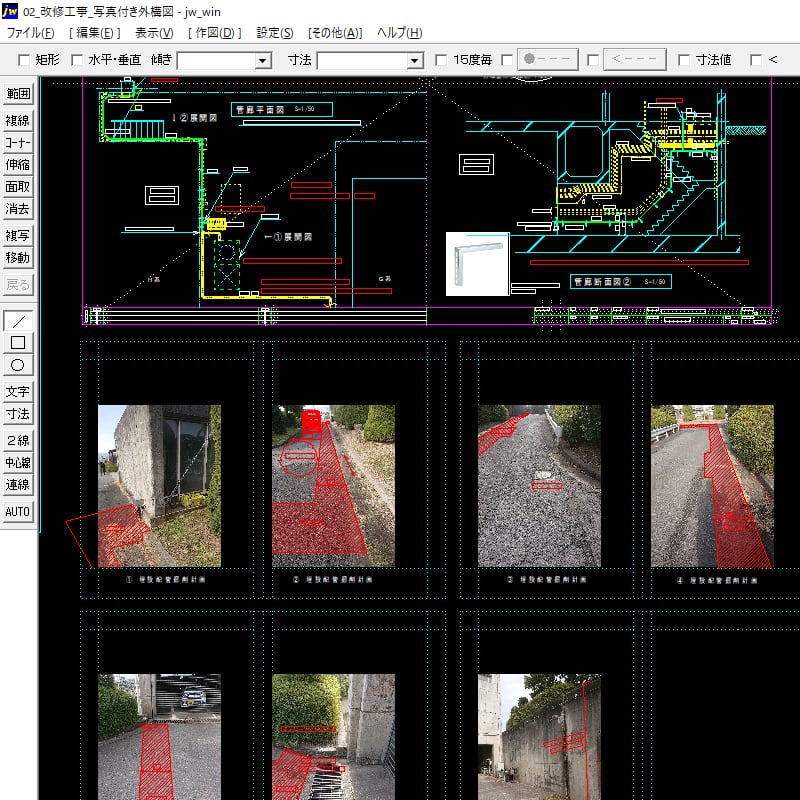

02_改修工事_写真付き外構図
03_ラーメン構造_階スリーブ図
04_壁構造_階スリーブ図(小開口の扱い)
05_住戸タイプ平面詳細図_衛生(集合管+カンペイ立管)
06_2F受水槽廻り詳細図_加圧給水_2槽式電磁弁
07_学校_受水槽改修詳細図(材料集計あり)
08_消火ポンプ室(有効水量・釜場)
09_パッケージ消火設備_露出型を埋込
10_チラー更新工事_防振架台_均圧管
11_室外機・エコキュート基礎_アンカー詳細図
12_全熱交換器・有圧換気扇等_断面詳細図_鉄骨造
13_保育園_空調換気(GHP-シーリングファン)_平面詳細図_木造
14_保育園_空調換気(GHP)_断面図_木造
15_調理室_空調換気施工図(厨房排気フード計算)_鉄骨造
16_保育園_衛生設備_平面詳細図_木造(材料集計あり)
17_調理室_厨房排気ダクト平面詳細図_木造
18_調理室_厨房排気ダクト断面図_木造
19_厨房SUSフード製作図_給排気形フード
20_換気ベンドキャップ_プラン図(型式集計)
-
